Products

Total 252 items

PT38 80°C

Sensor for contact surface temperature measurement. End of stem from  stainless steel is flatten with bore Ø4,2mm for surface mounting. Optional dimensions and design. For approximate measurement only.
  • basic design 6x50mm Pt100/B with cable 4w 1m
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • temperature range -30…+80°C with PVC cable
  • dielectric strength: 500V, insulation resistance min. 20MΩ (circuit to metal parts)

from €27.10 excl. VAT

PT38 200°C

Sensor for contact surface temperature measurement. End of stem from  stainless steel is flatten with bore Ø4,2mm for surface mounting. Optional dimensions and design. For approximate measurement only.
  • basic design 6x50mm Pt100/B with cable 4w 1m
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, PTC, thermocouples…
  • temperature range -40…+200°C with cable MCBE-AFEP
  • dielectric strength: 500V, insulation resistance min. 20MΩ (circuit to metal parts)

from €27.10 excl. VAT

PT38 350°C

Sensor for contact surface temperature measurement. End of stem from  stainless steel is flatten with bore Ø4,2mm for surface mounting. Optional dimensions and design. For approximate measurement only.
  • basic design 6x50mm Pt100/B with cable 4w 1m
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, thermocouples…
  • temperature range -10…+350°C with cable BIMV-CNTEVS
  • dielectric strength: 500V, insulation resistance min. 20MΩ (circuit to metal parts)

from €27.10 excl. VAT

PT40

Temperature sensor with high-speed response for for air conditioning. Aluminium connection head with stainless stem, IP56.
  • basic design Ø8 x 400mm, -25…+100°C (T=c. 2,5sec in water)
  • mounting by special holder for air conditioning
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • accuracy according to used sensor

from €50.70 excl. VAT

PTP40

Temperature sensor with high-speed response for for air conditioning. Aluminium connection head with stainless stem, IP56. Output 4…20mA, 0…10V or RS485 (ASCII or MODBUS).
  • basic design Ø8 x 400mm, -25…+100°C (T=c. 2,5sec in water)
  • mounting by special holder for air conditioning
  • it can be use transmitters
       - PP200 with output 4…20mA
       - PP300 with output 0…10V
       - PX300 with output 4…20mA with galvanic isolation
       - PPL100 with output ASCII or MODBUS
  • power supply by output loop 8…28V DC, ripple max. 0,5V
  • any measuring range <-50…+80>°C, min. span 50°C
  • accuracy ±0,5% from span (max. ±0,25°C)
  • another parameters are shown in the datasheet of used transmitter

from €101.70 excl. VAT

PT50

Temperature sensor for screwing into thermowells or welded-on pieces. Aluminium connection head with stainless stem, IP56.
  • basic design Ø8mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4 or others by request
  • stem from stainless steel Ø8 or 10mm
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • accuracy according to used sensor

from €46.80 excl. VAT

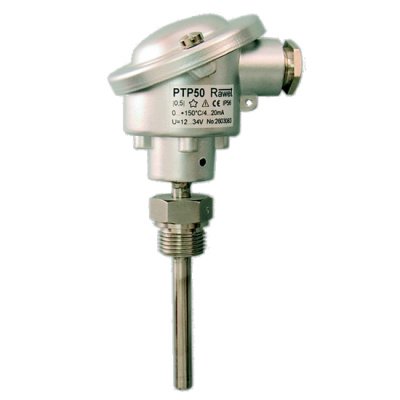

PTP50

Temperature sensor for screwing into thermowells or welded-on pieces. Aluminium connection head with stainless stem, IP56. Output 4…20mA, 0…10V or RS485 (ASCII or MODBUS).
  • basic design Ø8mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4 or others by request
  • stem from stainless steel Ø8 or 10mm
    • it can be use transmitters
         - PP200 with output 4…20mA
         - PP300 with output 0…10V
         - PX300 with output 4…20mA with galvanic isolation
  •    - PPL100 with output ASCII or MODBUS
  • power supply by output loop 8…28V DC, ripple max. 0,5V
  • any measuring range <-50…+80>°C, min. span 50°C
  • accuracy ±0,5% from span (max. ±0,25°C)
  • another parameters are shown in the datasheet of used transmitter

from €94.40 excl. VAT

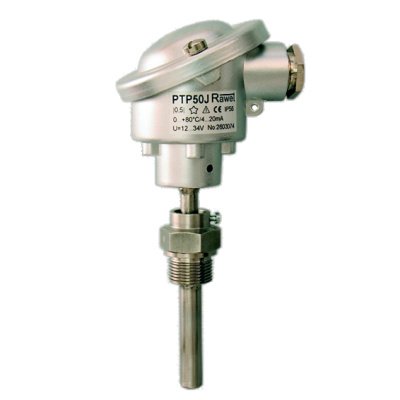

PT50J

Temperature sensor for screwing into wall of pipes or tanks. Aluminium connection head with stainless stem, IP56.
  • basic design: stem Ø8mm, thermowell Ø10mm or stem Ø6mm, thermowell Ø10mm
  • measuring range-25…+200°C (T=c. 30sec) or –25…+400°C (T=c. 50sec)
  • screw fitting: G1/2; M20x1,5; M27x2, G3/4..
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • accuracy according to used sensor

from €53.40 excl. VAT

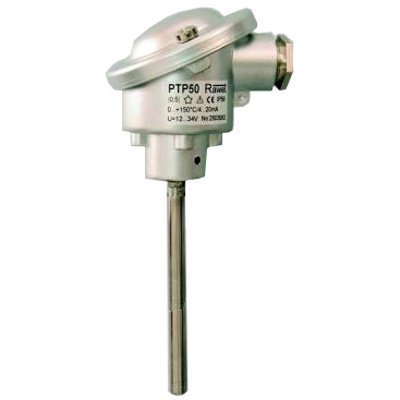

PT50H

Temperature sensor without screw fitting. It is suitable into thermowells or mounting by adjustable threads. Aluminium connection head with stainless stem, IP56.
  • basic design Ø8mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • stem from stainless steel Ø 3, 4, 5, 6, 8 or 10mm
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • accuracy according to used sensor

from €44.00 excl. VAT

PTP50H

Temperature sensor without screw fitting. It is suitable into thermowells or mounting by adjustable threads. Aluminium connection head with stainless stem, IP56. Output 4…20mA, 0…10V or RS485 (ASCII or MODBUS).
  • basic design Ø8mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • stem from stainless steel Ø 3, 4, 5, 6, 8 or 10mm
  • it can be use transmitters
       - PP200 with output 4…20mA
       - PP300 with output 0…10V
       - PX300 with output 4…20mA with galvanic isolation
       - PPL100 with output ASCII or MODBUS
  • power supply by output loop 8…28V DC, ripple max. 0,5V
  • any measuring range <-50…+80>°C, min. span 50°C
  • accuracy ±0,5% from span (max. ±0,25°C)
  • another parameters are shown in the datasheet of used transmitter

from €91.70 excl. VAT

PMP55

Temperature sensor with thin stem and high-speed response for screwing into thermowells or welded-on pieces. Small aluminium connection head with stainless stem, IP56. Output 4…20mA.
  • basic design Ø6mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4..
  • stem from stainless steel Ø 3, 4, 5 or 6mm
  • inbuilt programmable transmitter PMA300 with 4…20mA output
  • power supply by output loop 8…30V DC, ripple max. 0,5V
  • any measuring range <-50…+80>°C, min. span 50°C
  • accuracy ±0,5% from span (max. ±0,25°C)
  • another parameters are shown in the datasheet of used transmitter PMA300

from €106.20 excl. VAT

NZ124

Power supply unit 24V DC with s toroid transformer and linear voltage regulator, max. 24mA

The power supplies are intended to power the converters, isolating modules, converter stem thermometers and other devices in the industry. They are mounted into switchboxes on a DIN 35 standard electrical equipment mounting rail.

  • supply voltage: 230V AC ± 10% (45 – 65 Hz)
  • output voltage: 24V DC, ±5%
  • output power capacity: 0.5VA (22mA)
  • protection: transformer with thermal fuse + electronic cut-out

€66.80 excl. VAT

NZ224

Power supply unit 24V DC with s toroid transformer and linear voltage regulator, max. 200mA

The power supplies are intended to power the converters, isolating modules, converter stem thermometers and other devices in the industry. They are mounted into switchboxes on a DIN 35 standard electrical equipment mounting rail.

  • supply voltage: 230V AC ± 10% (45 – 65 Hz)
  • output voltage: 24V DC, ±5%
  • output power capacity: 5VA (200mA)
  • protection: transformer with resettable thermal fuse

€78.30 excl. VAT

ACM-FW

WIDEBAND FREQUENCY AND PULSE TRANSDUCER
  • measurement frequency in wide range 0..120kHz
  • unipolar and bipolar input signl
  • conversion accuracy  0,2%
  • response time 300ms
  • isolation input-output-power supply: 4000Vef
  • universal power supply 19 – 300V DC & 90 – 250V AC

€170.70 excl. VAT

Ht60B

Easy-to-use PID controller
  • PID / 2-state controller
  • controlling of stp value
  • 1 measuring input
  • 2 outputs
  • communication line
  • ramp function
  • automatic / manual operation





from €150.70 excl. VAT

PM55PR

new
Bearing temperature sensor with spring-loaded stem. Small aluminium connection head with stainless stem, IP56.
  • spring-loaded protection tube that ensures metallic contact between bearing and sensor
  • basic design Ø6mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4..
  • stem from stainless steel Ø 3, 4, 5 or 6mm
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • accuracy according to used sensor

from €492.40 excl. VAT

TZN

new
TRANSMITTER FOR  FULL STRAIN GAUGE WEIGNING SCALES
  • measures and separates a signal from a resistive or semiconductor strain gauge bridge
  • allows to measure both polarity input signal
  • dielectric strength 4000Vef input - output - power supply
  • auxiliary power supply 19-300V DC 90-250V AC
  • DIN 35 rail design
  • conversion accuracy <0.1%
  • time constant approx. 100ms

€114.90 excl. VAT

PMP55PR

new
Bearing temperature sensor with spring-loaded stem. Small aluminium connection head with stainless stem, IP56. Output 4…20mA.
  • spring-loaded protection tube that ensures metallic contact between bearing and sensor
  • basic design Ø6mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
  • screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4..
  • stem from stainless steel Ø 3, 4, 5 or 6mm
  • inbuilt programmable transmitter PMA300 with 4…20mA output
  • power supply by output loop 8…30V DC, ripple max. 0,5V
  • any measuring range <-50…+80>°C, min. span 50°C
  • accuracy ±0,5% from span (max. ±0,25°C)
  • another parameters are shown in the datasheet of used transmitter PMA300

from €95.90 excl. VAT

PT31PRI

new

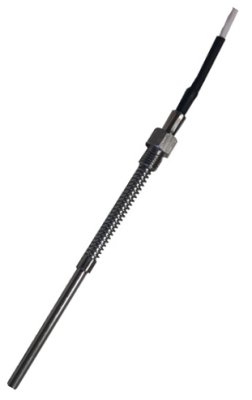

Insulated cable thermometer for bearing, with spring.
  • spring-loaded protection tube that ensures metallic contact between bearing and sensor
  • cable thermometer Ø 6mm for bearing, with insulated stem
  • it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
  • temperature range -60…+200°C (T=c. 10sec)
  • dielectric strength: 1500V, insulation resistance min. 20MΩ
  • Immersion length Y = depth of hole+ 10mm! Spring compressionis max. 20mm.

from €58.40 excl. VAT

Kabel BC PUR 5m 80°C

In stock
Kabel k teploměrům s konektorem M12
  • kabel v provedení PUR s délkou 5m
  • ve 4w provedení
  • do teploty 80°C
  •


€21.70 excl. VAT
